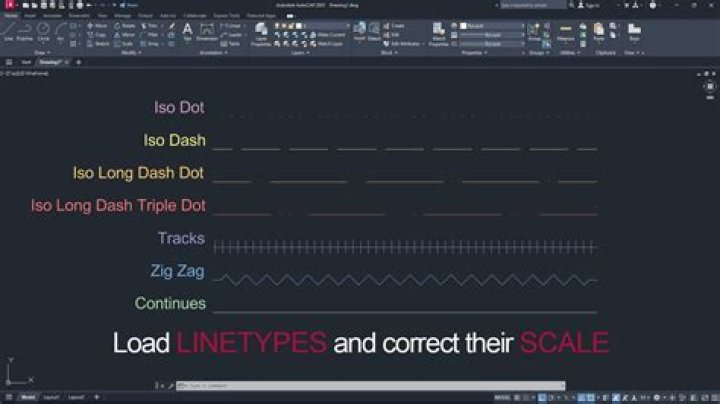

How do I change the linetype scale in XREF?
Solution:
- Type LTSCALE at the command line and increase the value. Start with an increase of 20x the current setting and increase from there until you see the linetypes appear properly.
- Match LTSCALE values.
- Match CANNOSCALE between the drawings.
What should Visretain be set to?
Check out the variable VISRETAIN. Type in on the command line. It most likely is set to “1” which means retain the XREF layer settings. This is a good thing and it should be set to “1”.
How do you scale a linetype in AutoCAD?
To set the linetype scale at the keyboard, follow these steps:
- Type LTSCALE (or LTS) and press Enter. AutoCAD responds with a prompt, asking you for the scale factor.
- Type the value you want for the linetype scale and press Enter. The easiest choice is to set the linetype scale to the drawing scale factor.
What is Celtscale in AutoCAD?
CELTSCALE. Sets the Current Entity Line Type Scale i.e. whatever you are about to draw next! The CELTSCALE is relative to LTSCALE. By setting CELTSCALE to 0.5 the next line you draw will have a linetype scale factor which is half that of the lines drawn previously.
What does Ltscale 1 represent in Autocad?
The LTSCALE system variable is used to control the global linetype scale factor in the drawing. Changing this scale factor, the appearance of linetypes in the drawing also changes. For example, an LTSCALE setting of 1 means that the dash length specified in the linetype definition is read directly as drawing units.
How many linetypes are there?
The AutoCAD software package comes with a library of standard linetypes that has 38 different standard linetypes….Typical Layers.
| Layer Name | Objects |
|---|---|
| Color | Red |
| Linetype | Continuous |
| Lineweight | 0.40mm |
What is Visretain in Autocad?
Controls visibility, color, linetype, lineweight, and plot styles. Use this system variable in conjunction with the VISRETAINMODE system variable to manage which xref layer property overrides you want to automatically sync on reload. Value. Description.
How does Visretain work in Autocad?
Controls the properties of xref-dependent layers. Controls visibility, color, linetype, lineweight, and plot styles. Use this system variable in conjunction with the VISRETAINMODE system variable to manage which xref layer property overrides you want to automatically sync on reload.
What does Cannoscale mean in Autocad?
Determines the current annotation scale for the Model tab or a layout viewport on a Layout tab. The CANNOSCALE value is the name of an existing annotation scale. …
How to change linetype scale in xrefs?
Linetype scale won’t work with individual lines in an xref. If your lines are set to Bylayer, you can change the linetype in the sheet (parent) drawing. Check your VISRETAIN settings and also experiment with the LTSCALE and PSLTSCALE settings. Autodesk Civil3D 2018, Revit 2018.
Why is the value of ltscale different in each xref?
The value of LTSCALE may need to be different if the source drawing and the current drawing are not at the same scale or units. For example, if a drawing using decimal feet is xref’d into a drawing with imperial inches, LTSCALE will need to be much larger. Match LTSCALE values.
How does the ltscale read linetype lengths?
When the LTSCALE is set to 1, the linetype lengths will be read directly as the drawing units. The gap reads as .25 drawing units, and the dashed segment is .5 drawing units.
How do you match ltscale values in AutoCAD?
Match LTSCALE values. If the drawings are using the same units, the values in the two drawings should be the same. Match CANNOSCALE between the drawings. Change the annotation scale of the drawing which looks incorrect so that it matches the drawing with the lines displayed correctly.
