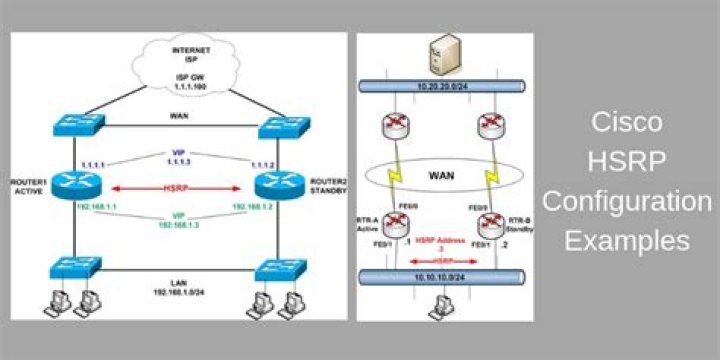

How do I configure HSRP protocol?

HSRP Configuration Example

  1. Configure the IP addresses 10.10.
  2. Configure the IP addresses 172.16.
  3. Configure HSRP version 2 between R1 and R2 using the IP addresses 10.10.
  4. Configure HSRP preemption on both R1 and R2.
  5. Configure R1 with a HSRP priority of 140.

How do I know if HSRP is configured?

Use the show standby command to verify your configuration. There’s a couple of interesting things here: We can see the virtual IP address here (192.168. 1.254).

How do I configure HSRP between two routers?

To achieve basic HSRP configuration, you need to do the following: Configure normal IP address on interface (cannot be the same as HSRP virtual IP) Bring interface up (no shutdown) Configure HSRP group and virtual IP address using the standby command.

How does vPC HSRP work?

Traditional HSRP operates in an active/passive fashion. One router will pass traffic, and the other will not. The standby router will take over the active role during a failure. HSRP with vPC operates in both active/active and active/passive at the same time.

Can we configure HSRP on router?

HSRP Configuration Overview: Each router in this group must define with the same virtual IP address using the standby [group-number] ip [Virtual ip-address] command. If you are configuring HSRP on VLAN trunks, each VLAN or Ethernet sub interface must be in a different standby group.

How do I set HSRP priority?

To configure Hot Standby Router Protocol (HSRP) priority, use the hsrp priority command in HSRP interface configuration mode. To restore the default values, use the no form of this command.

Does HSRP use multicast?

HSRP uses multicast address 224.0.

What multicast address does HSRP communicate hello packets to?

224.0
Although an arbitrary number of routers may run HSRP, only the active router forwards the packets that are sent to the virtual router IP address. Routers that run HSRP communicate HSRP information between each other through HSRP hello packets. These packets are sent to the destination IP multicast address 224.0.

What is vPC configuration?

vPC (Virtual Port-Channel), also known as multichassis EtherChannel (MEC) is a feature on the Cisco Nexus switches that provides the ability to configure a Port-Channel across multiple switches (i.e. vPC peers). vPC is similar to Virtual Switch System (VSS) on the Catalyst 6500s.

How do I set up vPC?

Steps

  1. Create a (VPC) Network.
  2. Create and Attach an Internet VPC Gateway.
  3. Create a Public Subnet.
  4. Create Security Group for NAT Server.
  5. Create a Custom Route Table.
  6. Create an Elastic IP Address for the NAT.
  7. Create and Launch a NAT Host Instance.
  8. Build Out the Rest of Your VPC.

What is the default priority of HSRP?

100
The default priority value is 100. The router in the HSRP group with the highest priority value becomes the active router.

Which multicast and port numbers correctly match for HSRP choose 2?

HSRP version 1 uses the multicast address 224.0. 0.2, while HSRP version 2 uses the multicast address 224.0. 0.102.
