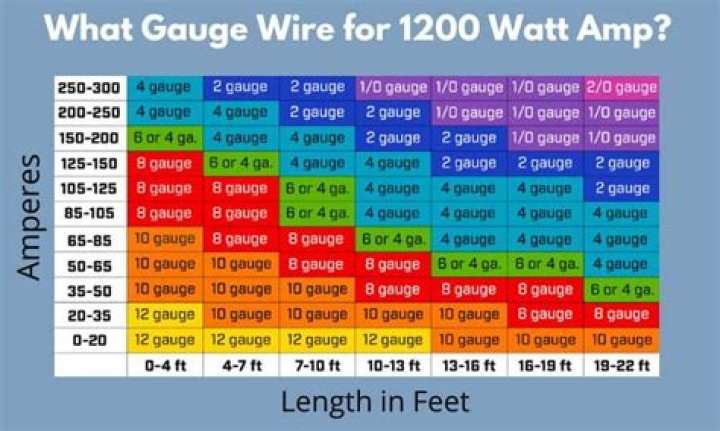

How do I know what gauge wire for my amp?
To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.
What size cables are amps?
Wire Size & Amp Ratings
| Copper | ||
|---|---|---|
| Wire Gauge Size | 60°C (140°F) NM-B, UF-B | 90°C (194°F) THWN-2, THHN, XHHW-2, USE-2 |
| 14 | 15 | 25 |
| 12 | 20 | 30 |
| 10 | 30 | 40 |
How many amps can a 12 2 wire handle?
30 amps
Maximum Breaker Size is 30 amps. You can use a 20 amp circuit breaker with 12/2 Romex as 12/2 wire is rated for 20 amps.
Is 0 gauge wire really necessary?
For up to 500 watts RMS, 8 gauge is sufficient. From 1000 – 1500 watts RMS you should be running 2 gauge. Over 1500 watts RMS you need 0 gauge and a few other wiring and vehicle upgrades.
How many amps is 1 ought wire good for?
Wire Size and Amp Ratings
| Wire Size | 75°C (167°F) | |
|---|---|---|
| AWG | (mm²) | Copper |
| 1 | (42.4) | 130 |
| 1/0 | (53.5) | 150 |
| 2/0 | (67.4) | 175 |
What size wire do I need for 50 amp?
6
50 AMP Wire Size For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances.
How far can you run 12 gauge wire on a 20 amp circuit?
Originally Answered: How far can you run 12 gauge wire on a 20 amp circuit? About 400 feet. After that voltage drop is a factor and the gauge will have to be increased or the voltage increased.
What is the difference between 12 2 and 12 3 Romex?
The first number indicates the gauge of the wire. A 12-2 Romex will have a black(hot) and a white(neutral) wire as well as an unsheathed copper wire for ground. A 12-3 Romex will have a black(hot), red(hot), white(neutral), and bare copper. The red on a 12-3 is used for three-way light switches which are covered later.
How many amps can 6 3 wire carry?
55 Amps
The 6/3 wire is the dimensional and number of conductors, categorization of the wire. The wire can be of any material which will vary the current capacity of the wire. If the wire is of copper, the 6/3 AWG will carry a current of 55 Amps whereas if the wire is of aluminum, then the capacity of the wire is 40 Amps.
