How do you calculate the inductance of an air core coil?
L = (0.2 x d2x N2) / (3d + 9l =10b)
- L = Inductance (in μH)
- d = Diameter of the inductor coil (Inches)
- l = Length of the indutor coil (inches)
- b = Diameter of the coil winding wire (inches)
- N = Total turns of wire.
What is air cored coil inductance?
The square of diameter of the coil. 3. A form factor, F dependent on the ratio of coil radius to coil length plus winding depth.
How do you calculate a coil?
To obtain the coil length we have to divide the result by the section of the coil determined by coil width and thickness. The coefficient 1000 is used to compensate the dimensions in [mm] with the length in [m]. For example, a coil with OD = 1600mm, ID = 508mm and T = 0,6mm results in a length of 3010 meters.
What is the formula for inductance of a coil?
L = ΦN/I. Over here: L refers to the inductance. Φ is the Magnetic flux. N refers to the number of coil turns.
How do you make an inductor air core?
Making a Simple Air Core Inductor (Induction Coil)
- Step 1: What You Need. A small reel of enamelled copper wire.
- Step 2: Turning the Wire. Using the drill bit as a template, wrap the wire, counting up to the number of desired turns.
- Step 3: Forming the Legs.
- Step 4: Tinning the Legs.
- Step 5: Completed Coils.
- 38 Comments.
How do you calculate henrys in a coil?
The formula is: The micro henrys of inductance in a coil = (N^2)(D^2)/(18D + 40L) where “N” equals the number of rings in the coil, “D” equals the diameter of the coil and “L” equals the length of the coil.
What is the formula of induced emf?
An emf induced by motion relative to a magnetic field is called a motional emf. This is represented by the equation emf = LvB, where L is length of the object moving at speed v relative to the strength of the magnetic field B.
How do you make an air core inductor?
How do you calculate coil windings?
Refer to the manufacturer’s specification regarding the winding or measure it with a micrometer from the center of the wire coil to the outer section of the coil. Call this value “r.” A = 3.1415 * (1.5)(1.5) = 7.068 square meters. Find the number of wire turns and the length of the wire.
What is the inductance of the inductor?
An inductor is characterized by its inductance, which is the ratio of the voltage to the rate of change of current. In the International System of Units (SI), the unit of inductance is the henry (H) named for 19th century American scientist Joseph Henry.

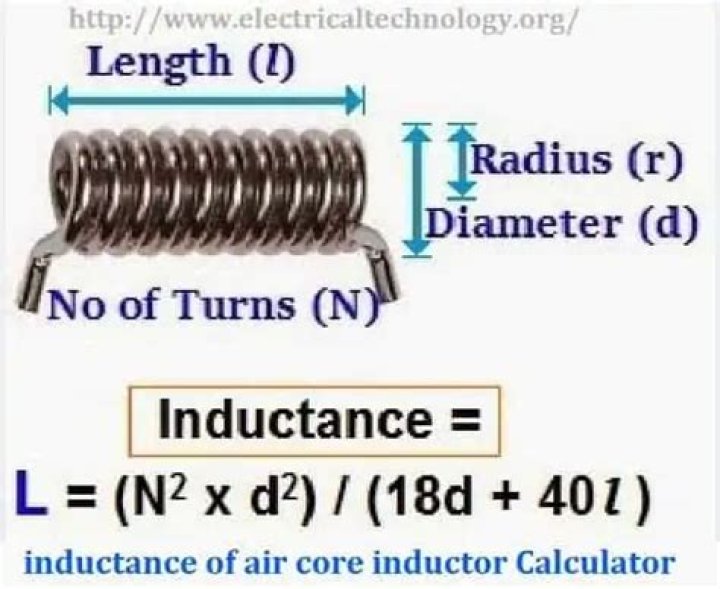

How do you find the inductance of an air core inductor?
Formula & Equations for inductance of air core inductor Calculator Inductance of an Air core coil inductor L = (N2 x d2) / (18d + 40l) … μH Where, N = Number of turns, d = Inductor Coil Diameter, l = Inductor Coil Length.
Can I make my own air cored inductor for RF circuits?
The inductors required for RF circuits (antenna, tuner, amplifier etc) are almost impossible to find in the market and the only solution is nothing other than home-brewing them. With a little practice and patience you can construct almost all air cored inductors at home.
What is the length of the coil used in the inductor?
‘l’ is the length of the coil specified in inches. ‘n’ is the number of turns. The length of the coil used in the inductor should be equal to or 0.4 times the diameter of the coil. As shown in the equation, inductance of the air-core inductor varies as the square of the number of turns.
What is the purpose of the inductor calculator?
This calculator is useful when making antenna matching units, low pass filters, crystal sets, antenna traps, resonant circuits or anywhere where an air cored single layer inductor is required. Diameter and length of inductor are entered in millimetres along with the number of turns.
