How does an alumina refinery work?
PROCESS DESCRIPTION: ALUMINA REFINING Alumina refining produces alumina (Al 2O 3) from the bauxite ore, by exploiting the reversible reaction of the Bayer process1–3: The reaction is firstly driven in the sodium aluminate (NaAlO 2) direction by the addition of caustic soda (NaOH) to bauxite.
What is the process of refining aluminium?
The Bayer process, discovered in 1887, is the primary process by which alumina is extracted from bauxite. To produce pure aluminum, alumina is smelted using the Hall–Héroult electrolytic process. This process is referred to as primary production.
What is the process used to turn alumina into aluminium called?
electrolytic reduction process
In each reduction cell, aluminium is produced from alumina via the electrolytic reduction process. The entire cell is filled up with molten cryolite that creates a conductive environment at a temperature of 950oC.
How do you mine alumina?
Bauxite is mined by surface methods (open-cut mining) in which the topsoil and overburden are removed by bulldozers and scrapers. The topsoil is then stored and later used for revegetating and restoring the area after mining is completed.
How does the Bayer process work?
In the Bayer process, bauxite ore is heated in a pressure vessel along with a sodium hydroxide solution (caustic soda) at a temperature of 150 to 200 °C. At these temperatures, the aluminium is dissolved as sodium aluminate (primarily [Al(OH)4]−) in an extraction process.
How is alumina extracted from bauxite?
Extracting aluminium The bauxite is purified to yield a white powder – aluminium oxide (also known as alumina) – from which aluminium can be extracted. The extraction is done by electrolysis , but first the aluminium oxide must be melted so that electricity can pass through it.
What is alumina ceramic?
Alumina ceramic (Aluminum Oxide or Al2O3) is an excellent electrical insulator and one of the most widely used advanced ceramic materials. Alumina components are used in a wide range of applications such as electronics, pump components and automotive sensors.
What is the difference between alumina and bauxite?
Bauxite is a more general term for a piece of rock made of oxides of hydrated aluminum. It is the primary ore of alumina, which is used to make the actual aluminum. This ore is also utilized in making aluminous refractories and synthetic corundum. In this connection, aluminum is a very ductile element.
What is added in electrolysis of alumina?
In the electrolysis of alumina, cryolite added lowers the melting point of alumina and increases the electricity conductivity of the melt.

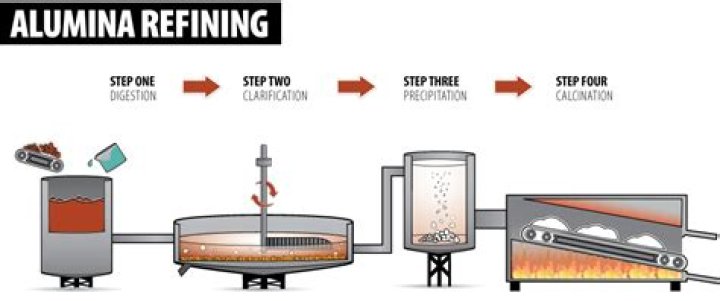

What are the stages in alumina production?
Pure aluminium oxide, called alumina, is extracted from bauxite via a process called refining, composed of two steps: a digestion process, using caustic soda, which allows the separation of aluminium hydroxide from the so-called “bauxite residue”, followed by a calcination step which removes the water content in the …
What is bauxite mining process?
Bauxite ore is the world’s primary source of aluminum. The ore must first be chemically processed to produce alumina (aluminum oxide). Alumina is then smelted using an electrolysis process to produce pure aluminum metal. The ore is acquired through environmentally responsible strip-mining operations.
How is bauxite mined in Australia?
Bauxite is mined in Australia using open-cut mining, which suits the relatively shallow bauxite deposits located mostly in Western Australia and Queensland. Mined bauxite is either exported or refined domestically into alumina.
