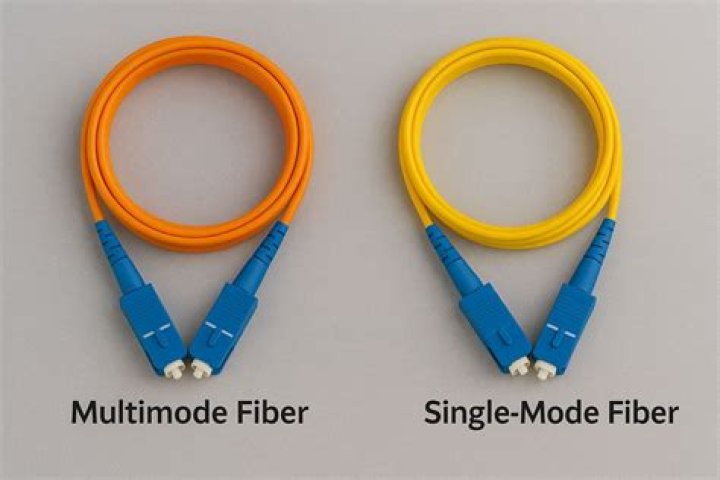

How far can multi mode fiber run?
This depends on the application. Multimode fiber will allow transmission distances of up to about 10 miles and will allow the use of relatively inexpensive fiber optic transmitters and receivers. There will be bandwidth limitations of a few hundred MHz per Km of length.
How far can you run 62.5 multimode fiber?
550 meters
As discussed earlier, Gigabit Ethernet already supports the use of 62.5-micron multimode fiber at distances of up to 550 meters using 1,300-nm lasers.
How far can fiber optics carry a signal?
Modern fiber optic cables can carry a signal quite a distance — perhaps 60 miles (100 km). On a long distance line, there is an equipment hut every 40 to 60 miles.
What is the maximum guaranteed distance that OM4 multimode fiber can carry a 100G signal?
OM3 And OM4 Fiber 10G/40G/100G Transmission Distance The maximum transmission distance of OM4 fiber is 400-550m (depending on module capability) while OM3 fiber can only be up to 300m.
How far can you run 50 micron fiber?
Both 50- and 62.5-micron fiber support minimum distances of 550 meters in long-wavelength, 1300-nm Gigabit Ethernet transmission. However, 50-micron fiber also supports 550-meter distances in the 850-nm operating window, where 62.5-micron fiber supports only 220 meters.
Can multimode fiber support 100gb?
OM3 and OM4 multimode fibers are compatible with 1GbE, 10GbE, 40GbE, and 100GbE applications, but their transmission distance depends.
Can you run 10g over 62.5 multimode fiber?
Unfortunately the fiber runs were believed to be between 200ft and 400ft in distance. With a 1000BaseSX transceiver you can reach 220m (721ft) over 62.5µm (OM1) fiber plant. With a 10GBaseSR transceiver you can only achieve 33m (108ft) over 62.5µm (OM1) fiber plant.
Can you mix 62.5 and 50 micron fiber?
Optical connections are trickier. Although it is technically feasible to combine 50 micron and 62.5 micron core multimode fibers in the same system, there is a one-time attenuation loss when coupling 62.5 micron fiber into 50 micron fiber.
What is the maximum distance of a fiber optic link that can be achieved without using any optical amplifier or repeater?
This means that at 2.5 Gb/s, the maximum distance is 100 km with no amplifier.
What is the distance for OM4 fiber?
400 m.
OM4 fiber distance is longer than OM3 fiber distance based on 10, 40 and 100 Gb/s. But the maximum transmission distance of OM4 under 10G remained controversial. As a rule of thumb, it is recognized as 400 m. But it still can achieve up to 550 m if the OM4 fiber has an ultra high quality.
