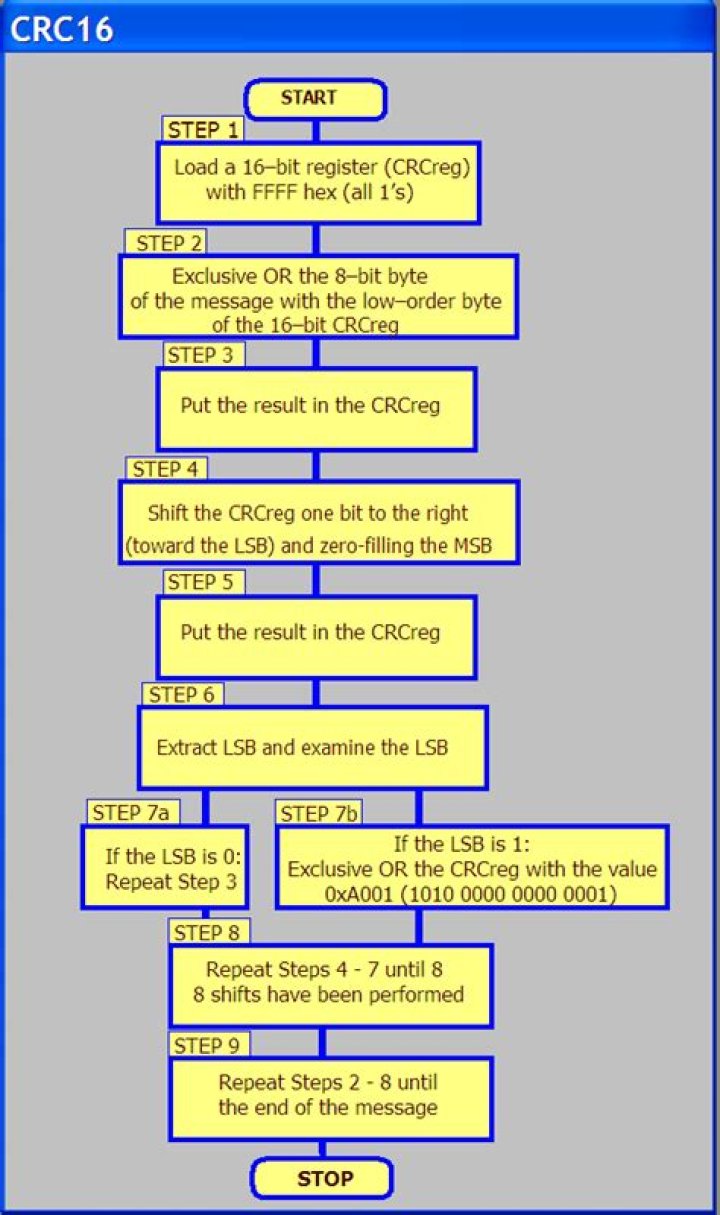

How is CRC 16 calculated?
7 Answers
- a) run the data bits through the CRC loop starting from the least significant bit instead of from the most significant bit.
- b) push the last 16 bits of the CRC out of the CRC register after you’ve finished with the input data.
What is CRC Ccitt 16 bit?
The CRC- 16 bits code computes a 16-bit cyclical redundancy check (CRC) algorithm on an input serial data stream. The polynomial can be defined to implement CRC functions, such as the CRC-16 or CCITT algorithm. A seed value can be specified to initialize the starting data value.
How is CRC calculated with example?
A checksum, calculated by CRC, is attached to the data to help the receiver to detect such errors. Refer also to [1] for a short or to [4] for a very detailed CRC introduction. CRC is based on division. For example, the input data 0x25 = 0010 0101 is taken as 0*x7 + 0*x6 + 1*x5 + 0*x4 + 0*x3 + 1*x2 + 0*x1 + 1*x0.
What is the polynomial used in CRC Ccitt?
Polynomial representations of cyclic redundancy checks
| Name | Uses | Polynomial representations |
|---|---|---|
| Normal | ||
| CRC-8-CCITT | ITU-T I.432.1 (02/99); ATM HEC, ISDN HEC and cell delineation, SMBus PEC | 0x07 |
| CRC-8-Dallas/Maxim | 1-Wire bus | 0x31 |
| CRC-8-DARC | Data Radio Channel | 0x39 |
How do you calculate checksum?
To calculate the checksum of an API frame:
- Add all bytes of the packet, except the start delimiter 0x7E and the length (the second and third bytes).
- Keep only the lowest 8 bits from the result.
- Subtract this quantity from 0xFF.
What is the checksum size for Ccitt algorithm?
This page presents accurate implementations (long-hand and programmed) of the 16-bit CRC-CCITT specification, which is: Width = 16 bits. Truncated polynomial = 0x1021. Initial value = 0xFFFF.
How is CRC bit calculated?
To compute an n-bit binary CRC, line the bits representing the input in a row, and position the (n + 1)-bit pattern representing the CRC’s divisor (called a “polynomial”) underneath the left end of the row. In this example, we shall encode 14 bits of message with a 3-bit CRC, with a polynomial x3 + x + 1.
How is CRC division calculated?
To take a simple example, we have 32, and make it divisible by 9, we add a ‘0’ to make ‘320’, and now divide by 9, to give 35 remainder 4. So lets add ‘4’ to make 324. Now when it is received we divide by 9, and if the answer is zero, there are no errors, and we can ignore the last digit.
How is generator polynomial selected for CRC?
Any particular use of the CRC scheme is based on selecting a generator polynomial G(x) whose coefficients are all either 0 or 1. When a message is received the corresponding polynomial is divided by G(x). If the remainder is non-zero, an error is detected.
How do you manually calculate checksum?
How is checksum calculated in data communication?
Checksum In checksum error detection scheme, the data is divided into k segments each of m bits. In the sender’s end the segments are added using 1’s complement arithmetic to get the sum. The sum is complemented to get the checksum. The checksum segment is sent along with the data segments.
