How much does a ground penetrating radar survey cost?
Most systems fall in the $15,000 to $50,000 range. GPR systems can be rented for about $1,000 per week and a $300 mobilization charge. GPR surveys can be conducted by contractors with costs ranging from $1,000 to $2,000 per day depending on the amount of interpretation needed and if a report is required.
How deep can a GPR survey go?

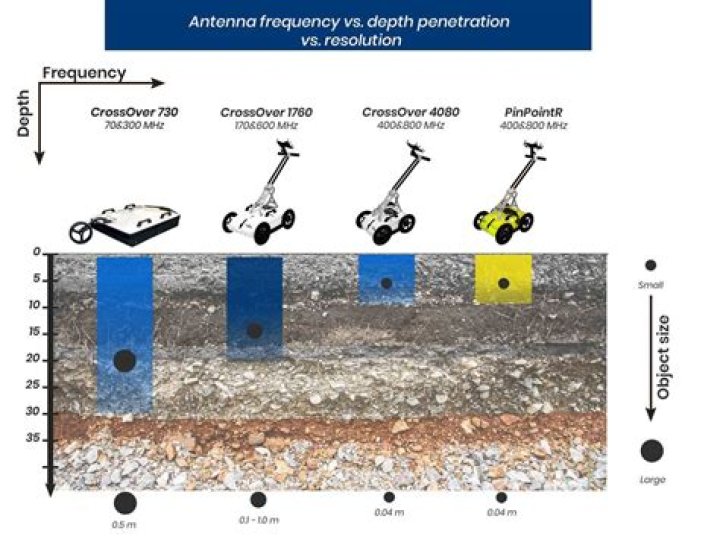

A high frequency GPR such as 1000MHz (1GHz) will typically see up to 1m deep. A medium frequency GPR such as 400MHz will typically see up to 2m deep. A low frequency GPR such as 200MHz will typically see up to 3m deep.
Can you hire ground penetrating radar?
Hire a RadioDetection RD1000+ that utilises radar technology to display an image map of underground features including non-conductive materials such as plastic pipes. With a durable, weatherproof construction, this hire ground penetrating radar system can operate in almost any terrain.
What can ground penetrating radar detect?
GPR is safe for use in public spaces and a wide variety of project sites. It detects metal and non-metal objects, as well as voids and underground irregularities. It makes it possible to measure the dimensions, depth and thickness of targets. Data is provided quickly and can cover a large site area.
How far down can ground penetrating radar go?
GPR can reach depths of up to 100 feet (30 meters) in low conductivity materials such as dry sand or granite. Moist clays, shale, and other high conductivity materials, may attenuate or absorb GPR signals, greatly decreasing the depth of penetration to 3 feet (1 meter) or less.
How accurate is ground penetrating radar?
How accurate is GPR? Though it is usually not possible to know the exact velocity that the GPR signal travels through the material, it is usually possible to estimate this within 90% accuracy. It is possible to use a depth to a known object to determine a precise velocity and thus calibrate the depth calculations.
How far can ground penetrating radar go?
100 feet
GPR can reach depths of up to 100 feet (30 meters) in low conductivity materials such as dry sand or granite. Moist clays, shale, and other high conductivity materials, may attenuate or absorb GPR signals, greatly decreasing the depth of penetration to 3 feet (1 meter) or less.
Is ground penetrating radar accurate?
GPR is 100% accurate While GPR is one of the most effective forms of non-destructive testing, it is not 100% accurate. The variables we have discussed here such as the conditions and material of the scanning area, along with the person using the equipment all affect the accuracy.
How accurate is ground radar?
Can ground penetrating radar detect gold?
GROUND PENETRATING RADAR SYSTEMS The standard metal detectors can read objects in the ground from 0″ to 9″ in the ground. Long range metal detectors can read the frequencies in the air from targets like gold, silver, iron artifacts, and much more.
Can GPR detect gold?
If you are a mining company looking for a vein of gold, silver, and other precious metals, you can scan the area and find the source. By using the GPR to scan the area, it can locate voids in the ground like mine tunnels. It can also be used to find cave systems, and it can be used to find buried treasures.
How do I find where a buried object is?
Surface ground-penetrating radar (GPR) is one of the radar technology that is widely used in many applications. It is nondestructive remote sensing method to detect underground buried objects.
