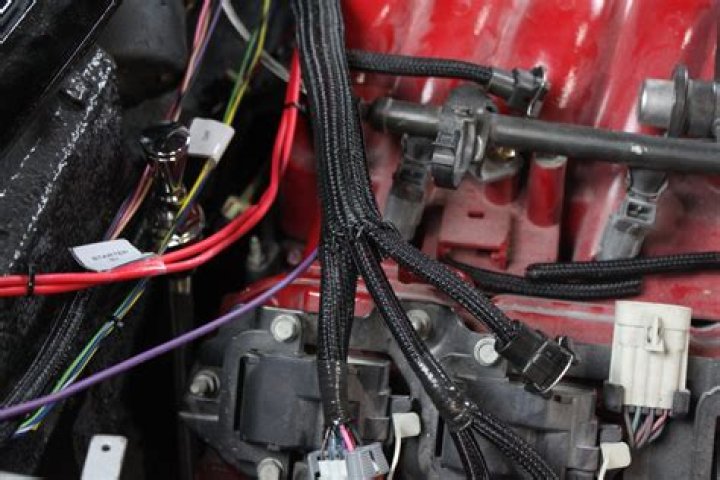

How much does it cost to replace a wiring harness in a car?
If you buy a basic engine harness wiring, it could cost $40 to buy it. On the other hand, the cost of a specialty wire starts at $90. Furthermore, the installation cost for a basic engine wiring harness is usually the specialty harness wiring installation.
What is wire harness in a car?
A wiring harness is an organized set of wires, terminals and connectors that run throughout the entire vehicle and relay information and electric power, thereby playing a critical role in “connecting” a variety of components.
What gauge wire is a car wiring harness?
Standard automotive primary wire is 18 gauge. This is good for signal wires, but not for hi-current applications. If you replace that section of wire with a piece of 18 gauge, it could cause a fire. Instead, you need to match the original wiring size.
What type of wire is used for cars?
The most typical type of wire used in most automotive applications is automotive cross-link wire and automotive primary wire. General Purpose High Temperature automotive wire is ideal for under-hood automotive wiring applications with hard-to-fit areas.
How long does it take to fix a wiring harness?
If the wiring harness in question is located in a tough-to-reach area, the technician may need to disassemble parts of the vehicle to gain access. In other words, installing a wiring harness could take as little as an hour, as long as 20 hours, or longer if complications arise.
How can you tell if a wire harness is bad?
a loose connection between the wire and that bolt. an issue with the ground wire, such as a visible trouble spot where the wiring harness is rubbing against something or where water and dirt might be present. use a jumper wire from the load to a known good ground to confirm there’s a ground-side issue.
How do I know if my wiring harness is bad?
So here is a list of some of the problems your project may face with a bad wiring harness.
- Engine Shutting Off At a Lower Speed.
- battery wiring harness—Problems Starting the Vehicle.
- battery wiring harness—Battery Terminal Corrosion.
- Lights and Other Electrical Components Not Working Properly.
Why do I need a wiring harness?
Wiring harnesses solve two essential problems within an electrical system – geometric limitations and electrical requirements. Wiring harnesses help provide the physical support system for cables and wires to be employed within a very specific space, in an organized, and protected manner.
How do I know what size wire I need for my car?
Wire gauge is determined by the cross-section area. American replacement wire is based on the American Wire Gauge System (the larger the number, the smaller the wire diameter). By stripping off a bit of insulation, you can measure the wire package diameter with a caliper or a micrometer.
What wire is used for engine harness?
Use 8-gauge for 150- to 200-amp loads more than 3 feet in length, and 40- to 50-amp loads of 25 feet. The 10-gauge wiring is appropriate for 150 to 200 amps at 3 feet, 100 amps at 7 to 10 feet, 30 to 50 amps at 15 to 20 feet and 20 to amps at 25 feet.
What is automotive cable?
These are used in automotive lightings, signals and instrument panel circuits in automobiles. As per JASO D611, we offer AV, AVS and AVSS cable mainly used in automobile harnesses. Along with ignition cable, we have PVC and elastomeric battery cables with flexible and extra flexible constructions.
