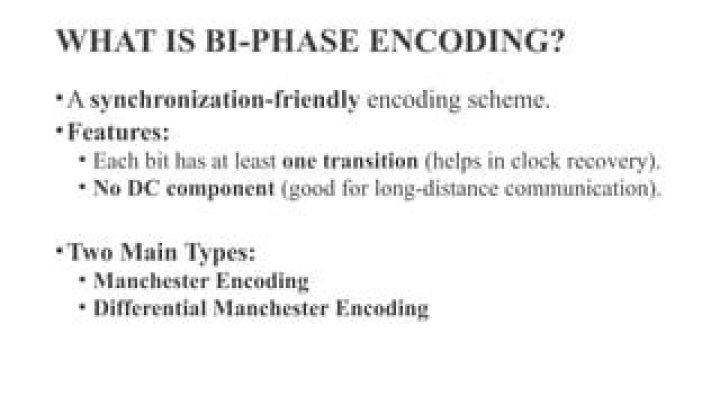

What is biphase encoding?
Bi-phase Encoding The signal level is checked twice for every bit time, both initially and in the middle. Hence, the clock rate is double the data transfer rate and thus the modulation rate is also doubled. The clock is taken from the signal itself. There are two types of Bi-phase Encoding.
What are the types of biphase encoding?
There are three types of bipolar encodingAMIB8ZSHDB3Bipolar Alternate Mark InversionA binary 0 is represented by zero voltage. A binary1s are represented by alternate positive and negative voltages.
What is NRZ L and NRZ M?
NRZ-L. Non return to zero – level (bipolar): this is a simple scale and level shift of the input TTL waveform. NRZ-M. Non return to zero – mark (bipolar): there is a transition at the beginning of each ‘1’, and no change for a ‘0’. The ‘M’ refers to ‘inversion on mark’.
Is Manchester encoding still used?
Manchester code was used in early Ethernet physical layer standards and is still used in consumer IR protocols, RFID and near-field communication.
How does NRZ L differ from NRZ I?
For NRZ-L(NRZ-Level), the level of the voltage determines the value of the bit, typically binary 1 maps to logic-level high, and binary 0 maps to logic-level low, and for NRZ-I(NRZ-Invert), two-level signal has a transition at a boundary if the next bit that we are going to transmit is a logical 1, and does not have a …
What is the difference between NRZ L and Manchester encoding?
NRZ is level sensitive related to the values being sent. Manchester is an NRZ encoding that is exclusively-ORed with the clock. This provides at least one transition per bit. NRZI also uses a transition in the middle of the clock cycle, but this only occurs when there is a 1 value.
How does NRZ-L differ from NRZ I?
What is the difference between NRZ-L and Manchester encoding?
How does NRZ L differ from Nrzi?
“Non return-to-zero-level (NRZ-L) is a data encoding scheme in which a negative voltage is used to represent binary one and a positive voltage is used to represent binary zero. As with NRZ-L, NRZI maintains a constant voltage pulse for the duration of a bit time. This distinguishes NRZI via NRZ-Level. “
What is 4b 5b encoding?
4b/5b encoding is a type of ‘Block coding’. This processes groups of bits rather than outputting a signal for each individual bit (as in Manchester encoding). A group of 4 bits is encoded so that an extra 5th bit is added. The encoded bits use 5-bit, and hence have 2^5 or 32 different bit patterns.
What is the difference between Manchester encoding and differential Manchester encoding?
Answer Expert Verified. In Manchester Encoding, the phase of a square wave carrier is controlled by data. The frequency of the carrier is the same as the data rate. In Differential Manchester Encoding, the clock and data signals combine together to form a single synchronizing data stream of two levels.
What is differential Manchester line coding?
From Wikipedia, the free encyclopedia. Differential Manchester encoding (DM) is a line code in digital frequency modulation in which data and clock signals are combined to form a single two-level self-synchronizing data stream.
