What is contact tube to work distance?

What is contact tube to work distance?

Is the distance that includes the electrical stick-out plus the arc length.

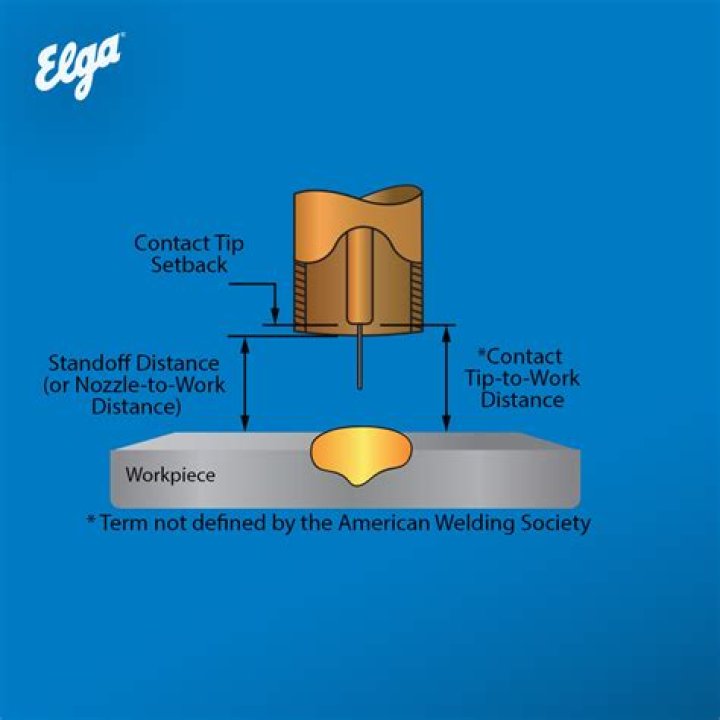

What is contact tip to work distance?

CTWD (contact tip to work distance) is as it says, the distance from the end of the contact tip to the plate or work piece. ESO (electrical stickout, or more technically correct, electrical extension), is the distance from the end of the contact tip to the top of the welding arc. This could result in weld porosity.

Is the distance from the contact tube to the end of the electrode wire?

Electrode extension
5 Electrode extension. The distance between the end of extended electrode wire and the tip of contact tube is known as electrode extension or stick out.

Is the distance between the part that has to be welded and the electrode tip?

arc length
Every commercial welder will tell you that the arc length, also called arc gap, is the distance between the part that has to be welded and the electrode tip. The arc length depends on the arc stability, the weld current and the concentricity of the part.

What is Stickout in welding?

LESSON II Electrical Stick-Out – In any welding process using a solid or flux cored wire, the electrical stick-out is the distance from the contact tip to the unmelted electrode end. Sometimes called the “amount of wire in resistance”. This distance influences melt-off rate, penetration, and weld bead shape.

How thick can a stick welder weld?

3/8 inch
A: A 225- to 300-amp stick machine handles almost anything the average person will encounter, as most stick welding procedures require 200 amps or less. To weld material thicker than 3/8 inch, simply make multiple passes — this is what professionals do, even when welding on 1-inch structural steel.

What is the effect in MIG MAG welding for short stick-out distance?

Too short of an electrode extension increases the amperage and brings you closer to the weld pool, which can cause premature damage to the contact tip and create burn-through from too much heat.

What is the correct stick-out for GMAW?

For instance, a good guideline to follow is: for 0.024- and 0.030-inch wire, use 1/4- to 3/8-inch stick-out; for 0.035- and 0.045-inch wire, use 3/8- to 1/2-inch stick-out.

Is the distance from the base metal to the end of the electrode wire?

Arc length is the distance from the tip of the bare end of the electrode to the base metal. b. Arc length is equal to the diameter of the bare end of the electrode. 4.

What is the term for the length of wire from the end of the electrode to the contact tip?

Electrode extension: As defined by the American Welding Society (AWS), this refers to the length from the end of the contact tip to where the wire melts off.

What is weld gap?

Gap Welding is the process of bonding together two parts by placing both electrodes against the same surface on just one part. The weld current flows from one electrode, through the top part, and partially into the bottom part.

What is weldable arc length for welding?

The distance from the tip of the welding electrode to the adjacent surface of the weld pool.
