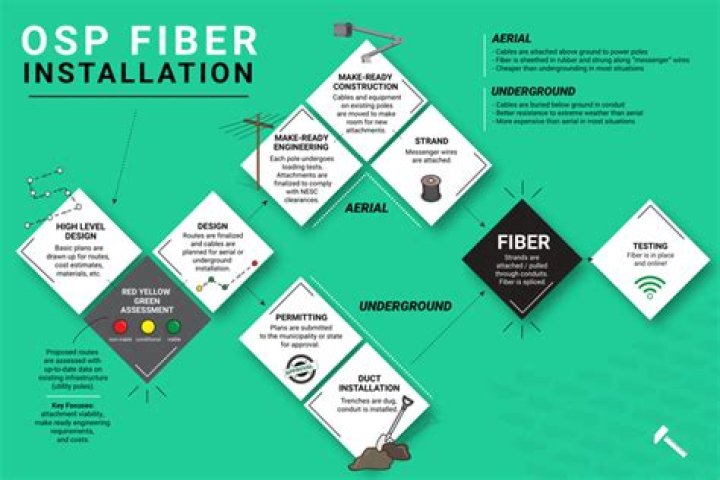

What is OSP fiber design?
OSP Design Process: Today I will explain about the OSP design process including FIBER OPTIC CABLES (FOC) like “use of existing Fiber Optic Cables (FOC),selection of Fiber Optic Cable (FOC)” etc. Fiber optic network fully depend upon the fiber planning and OSP design.
What is the max distance an OSP outside plant fiber is allowed to enter a building?
50 feet
The National Fire Protection Association (NFPA) requires that unlisted OSP cabling be terminated within 15 meters (50 feet) from its point of entry into the building, either through a wall or through the flooring.
What factors affect the performance of a fiber optic?
5 Factors Affecting Fiber Optic Cabling Performance
- Correct specification of fiber optic cabling. Make sure you have the correct fiber optic cabling installed for the speed you wish your network to run.
- Quality of construction.
- Cable tightness.
- Patching.
- Make sure that the fibers being used are correct.
What does OSP design Engineer do?
Perform construction and maintenance of OSP infrastructure according to industry standards. Maintain safety and security of OSP facility. Determine scope, budget and schedules for OSP projects. Monitor and control expenses within allotted budget.
What is OSP and how it works?
An Outside-Plant Engineer (OSP) plays a prominent role within the Telecom Industry. The primary responsibility of an OSP Engineer revolves around the construction and maintenance of plant infrastructure, design, and engineering as well as providing a route analysis of underground & aerial fiber optic installations.
What is the recommended length of spare OSP fiber that should be left at each end once pulled in?
30-60 feet
At any cable ends where splicing or termination is required, an extra 30-60 feet (10-20 meters) of cable should be left for splicing. Most splicing will be done in a trailer or tent on the ground and extra cable is needed to reach the splice location and have extra length to strip for splicing.
Where do outside plant OSP cables enter the building?
National Electric Code (NEC) Article 770.48 requires that unlisted, outside plant (OSP) fiber optic cables be terminated within 50 feet of a building entrance. 1 Entrance is defined as the point at which a cable emerges from an external wall, a concrete floor slab or a rigid metal conduit (Type RMC) into the building.
What are the factors that should be considered before implementing optical fiber?
The following tutorial lists the 7 most important factors to consider.
- Minimum Bend Radius.
- Maximum Tensile Rating.
- Maximum Vertical Rise.
- Cable Protection.
- Duct Utilization.
- Preconnectorized Fiber Cable Assemblies.
- Fiber Optic Cable Slack.
Which of the following are considerations that affect data transmission over fiber optic cabling?
Factors That Limit Optical Transmission Distance
- Optical Fiber Cable Type. Typically, the dispersion in the fiber optic cable could have a great impact on the transmission distance.
- Light Source of Fiber Optic Transceiver.
- Frequency of Transmission.
- Bandwidth.
- Splices and Connectors.
- Conclusion.
When designing a fiber optic network the first thing that must be considered is?
The first consideration for any network is choosing the proper fiber optic cable type. Before one can begin to design a fiber optic cable plant, one needs to establish with the end user or network owner where the network will be built and what communications signals it will carry. 3.
What type of material is most suitable for the design of the core of an optical Fibre?
The material used for currently commercialized fibers (core and cladding) include pure glass (SiO2), plastic, or a combination of both. The use of one or the other material will be determined by such factors as quality and economics.
