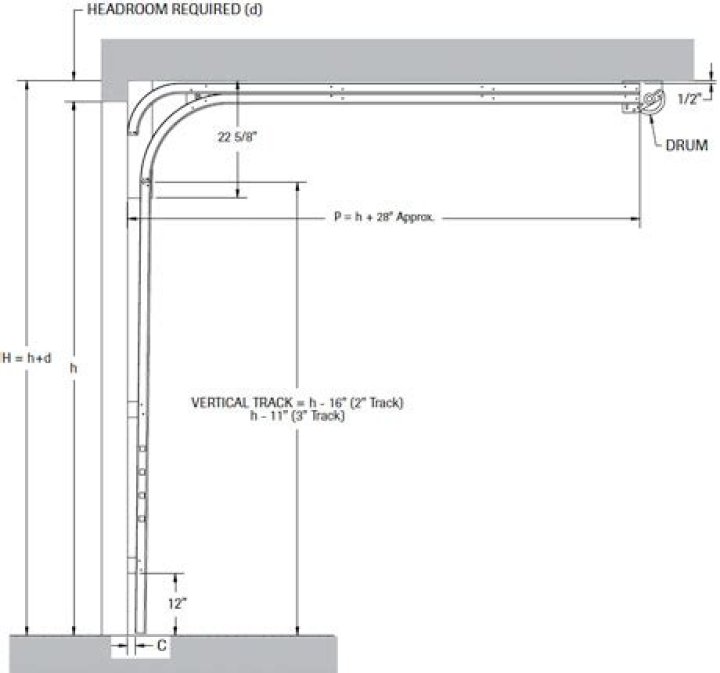

What is the minimum headroom for a garage door?
Standard Headroom Clearance Most standard garage doors with extension springs require a minimum of 10 inches of headroom. Doors that use torsion springs require at least 12 inches of headroom.
What is a low headroom track garage door?
A wide low headroom plate connects the two horizontal tracks to the top of the vertical flag bracket. The torsion springs are mounted opposite to the way they are on standard doors, and the springs are wound down instead of up. The drum is tight against the race of the end bearing.
How much clearance does a low clearance garage door need?
Low Headroom Clearance The upper horizontal track makes it possible for the opening to turn quickly. The minimum clearance for low-headroom garage doors is 9 1/2 inches of headroom for doors with torsion springs, and 4 1/2 inches of headroom for doors with extension springs.
What is low headroom?
It’s called “low headroom hardware”. It can also be called a double- or dual-track system. Basically, instead of a single track, it has two tracks, one on top of the other. The top section of the door follows the upper track while the three other sections use the lower track.
How much clearance do you need for a roll up garage door?
You must accurately measure the height and width of the opening the roll up door will be installed in. Accurately measure the space on either side of the roll up garage door. The minimum required clearance is 12”, it can be more, but not less than 12”.
How much room do you need above a garage door opener?
For a standard garage door with an electric opener, you’ll want a minimum of 15 inches of overhead clearance. 12 inches for the door and torsion spring system and three inches for the garage door opener equipment.
How much headroom do you need for low headroom track?
The minimum required head space is 18-inches since it allows for the majority of standard track, spring and opener configurations to fit properly. Openings with less than the recommended headroom must have different spring and track configurations installed.
How much clearance is needed for a roll up garage door?
Accurately measure the space on either side of the roll up garage door. The minimum required clearance is 12”, it can be more, but not less than 12”. Accurately measure the head clearance from the header opening to the ceiling or any vertical incumbrances, like ferdowns or ledges.
What sizes do roll up doors come in?
A roll-up door is typically 30 feet by 4 inches wide and 28 feet by 4 inches high. The benefits of this kind of industrial garage door are threefold. Because roll-up garage doors are made of steel, they offer tight security and strong resistance to weather conditions.
How do you measure a roll up garage door?
Measure the width of the rough opening at the widest point. This is the distance between the right and left sides of the finished opening in feet and inches (to the ¼”). Then measure the height from the floor to the bottom of the header.
What are standard garage door heights?
The standard garage door width and height can vary by where you live, but is usually: 8 feet wide by 7 feet tall, or 9 feet wide by 7 feet tall for a single car garage door. 16 feet by 7 feet for a double garage door.
