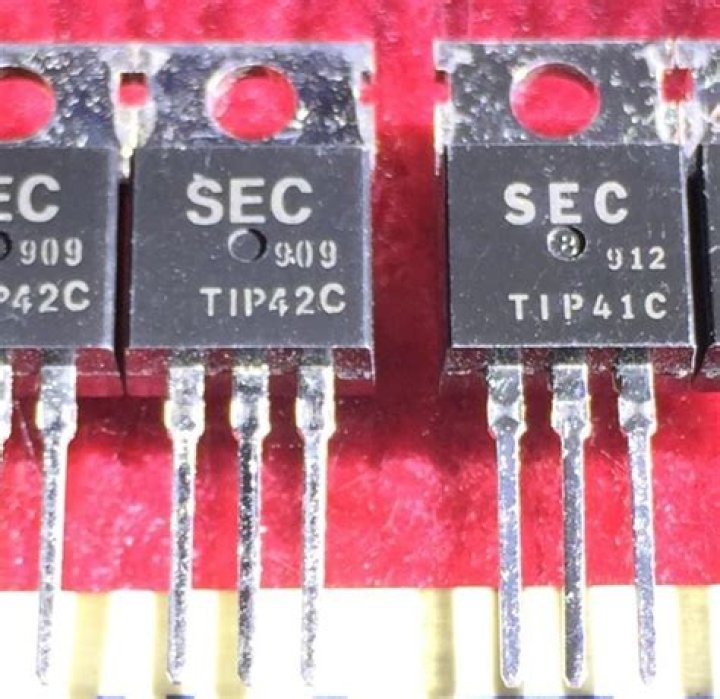

What is transistor TIP42C?
TIP42C is a three layer NPN or PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
What is the use of tip 42c transistor?
Tip42c is a medium power transistor mainly used for amplification and switching purpose. It is made up of silicon material and falls under the category of PNP transistors. The voltage across collector and emitter terminals is 100V and the voltage across base and collector terminals is 100V.
What is Tip41c?
The TIP41C is a base island technology NPN. power transistor in TO-220 plastic package that. make this device suitable for audio, power linear. and switching applications.
What is TIP32C transistor?
The TIP32C is a silicon Epitaxial-base PNP power transistor in Jedec TO-220 plastic package. It is intented for use in medium power linear and switching applications. The complementary NPN type is TIP31C.
What is 2N3055 transistor?
The 2N3055 is a silicon NPN power transistor intended for general purpose applications. It was introduced in the early 1960s by RCA using a hometaxial power transistor process, transitioned to an epitaxial base in the mid-1970s. Its numbering follows the JEDEC standard. It is a transistor type of enduring popularity.
What type of transistor is Tip41c?
Tip41c is an NPN transistor that comes in the TO-220 package and is mainly used for amplification and switching purposes.
Which transistor can be used in place of TIP32C?
TIP32C Replacement and Equivalent TIP32C transistor nearest possible equivalents are CJF32C, TIP32D, BD582, BD592, BDT32C 2N6475 2N6476, 2SB1016, MJE30C, MJE32C, MJE5195, NSP582, NSP5195, RCA30C, RCA32C, TIP62A, TIP62B, TIP62C, 2SB761B, 2SB762B, 2SB860, 2SB869, 2SB945, BD242C, BD540C, BD954, ECG292.
Where is BC547 transistor used?
BC547 Transistor Application BC547 is usually used for current amplifier, quick switching and pulse-width modulation (PWM). Therefore, if you need to control the speed of a motor or actuator in some of your projects, you can simply use this transistor to achieve it.
Why BC547 transistor is used?
The BC547 transistor is an NPN transistor. A transistor is nothing but the transfer of resistance which is used for amplifying the current. The main function of this transistor is to amplify as well as switching purposes. The maximum gain current of this transistor is 800A.
Can I use BD139 instead of BD140?
When large currents or voltages need to be controlled, Darlington Transistors can be used. Though the best choice for power transistors is BD139 and BD140 but if they are not available then you may also go for BD135 and BD136 which are NPN and PNP transistors respectively but preference must be given to BD139/140 pair.
