What is Transpulmonary pressure gradient?
The transpulmonary pressure gradient (TPG), defined by the difference between mean pulmonary arterial pressure (P(pa)) and left atrial pressure (P(la); commonly estimated by pulmonary capillary wedge pressure: P(pcw)) has been recommended for the detection of intrinsic pulmonary vascular disease in left-heart …
What is normal pulmonary vascular resistance in wood units?
A recent study showed that more than 50% of the patients with PH and PAWP ≤15 mm Hg had LVEDP values >15 mm Hg during simultaneous right and left heart catheterization (17).
What is normal pulmonary artery diastolic pressure?
Normal Hemodynamic Parameters
| Parameter | Equation | Normal Range |
|---|---|---|
| Pulmonary Artery Pressure (PAP) | Systolic (PASP) | 15 – 25 mmHg |
| Diastolic (PADP) | 8 – 15 mmHg | |
| Mean Pulmonary Artery Pressure (MPAP) | [PASP + (2 x PADP)]/3 | 10 – 20 mmHg |
| Pulmonary Artery Wedge Pressure (PAWP) | 6 – 12 mmHg |
What is diastolic gradient?
Diastolic pulmonary gradient (DPG) is a novel hemodynamic marker that is calculated as the difference between pulmonary artery diastolic pressure (PADP), and mean pulmonary capillary wedge pressure (PCWP).
What is normal pulmonary artery wedge pressure?
The normal mean pulmonary capillary wedge pressure (PCWP) is 2–14 mmHg (Fig. 2.16).

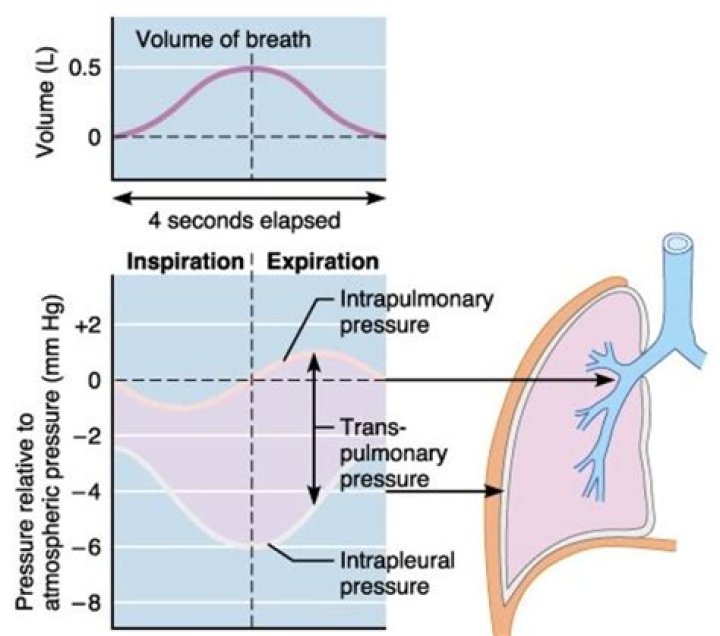

What happens when transpulmonary pressure increases?
As transpulmonary pressure increases, lung volume naturally increase and this relationship is curvilinear. At relatively low lung volumes, the lungs are highly distensible and for a given change in transpulmonary pressure results in relatively large increases in lung volume.
What is normal right atrial pressure?
The normal right-atrial pressure is 2–6 mmHg and is characterized by a and v waves and x and y descents (Fig. 2.4). The a wave represents the pressure rise within the right atrium due to atrial contraction and follows the P wave on the ECG by about 80 msec.
What is normal pulmonary vascular resistance?
A normal value for pulmonary vascular resistance using conventional units is 0.25–1.6 mmHg·min/l. Pulmonary vascular resistance can also be represented in units of dynes/sec/cm5 (normal = 37-250 dynes/sec/cm5).
What is normal pulmonary artery pressure by echo?
Pathophysiology. Normal pulmonary artery systolic pressure at rest is 18 to 25 mm Hg, with a mean pulmonary pressure ranging from 12 to 16 mm Hg. This low pressure is due to the large cross-sectional area of the pulmonary circulation, which results in low resistance.
What is the normal pulmonary artery wedge pressure?
The normal pulmonary capillary wedge pressure is between 4 to 12 mmHg. Elevated levels of PCWP might indicate severe left ventricular failure or severe mitral stenosis.
What is normal pressure gradient across mitral valve?
| Normal | Aortic Valve |
|---|---|
| Mitral Valve | Aortic Valve Mean Gradient |
| Normal Area 4.0-6.0 cm2 Mild Stenosis 1.5-2.5 cm2 Moderate Stenosis 1.5-1.5 cm2 Severe Stenosis < 1.0 cm2 | Normal Gradient < 5 mmHg Mild Stenosis 5-25 mmHg Moderate Stenosis 25-50 mmHg Severe Stenosis >50 mmHg |
| Mitral Valve Mean Gradient | Aortic Valve Peak Gradient |
What is a normal PCWP when someone is on mechanical ventilation?
A pulmonary artery catheter may provide additional information to assist in diagnosing ARDS. A normal PCWP (less than 18 mm Hg) helps to distinguish ARDS from left atrial hypertension, a condition in which PCWP is elevated.
