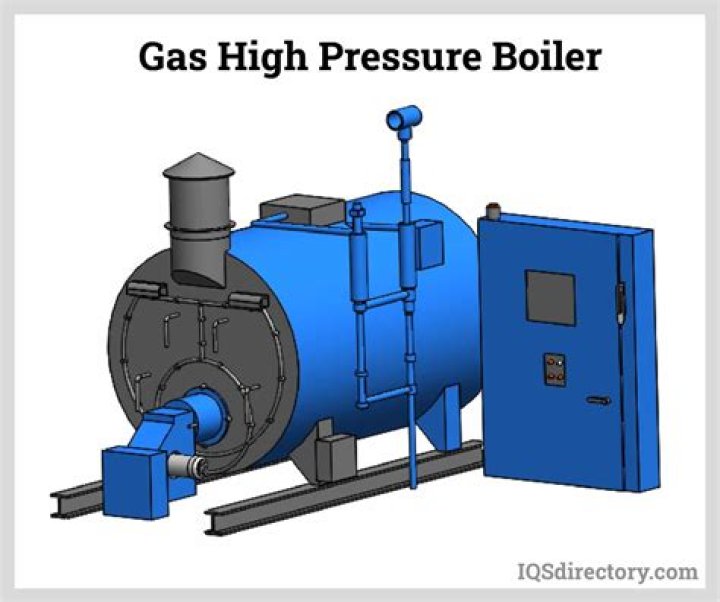

Which is high pressure boiler?
A high pressure boiler is a shell and tube heat exchanger that use boiled water to create steam or high pressure hot water. Using water filled tubes in a metal tank or enclosure, they create power by converting water into steam through thermal energy, which is used to power equipment.
What PSI is a high pressure boiler?
15 psi
High-Pressure Boiler Definition In high pressure boilers, steam pressure is above 15 psi. In low pressure boilers, steam pressure never goes beyond 15 psi. Temperature in high pressure boiler will always be greater than 250oC.
What is the main purpose of high pressure boilers?
These are used to increase the efficiency of the plant. These are developed because of rising cost of fuel and restrictions on air pollution. Modern power generation plants generally use high pressure boilers. These high pressure boilers have pressures above 140 bar and the temperature may be up to 540 – 610°C.
What is a high pressure boiler operator?
High Pressure Boiler Operator: That information required for a low pressure boiler operator license plus; feed water regulators, steam header and blow-off valve arrangements and operation; soot blowers, injectors; safety valve requirements and testing.
What is Babcock and Wilcox boiler?
Babcock And Wilcox Boiler is a stationary water tube boiler. It consists of the steam-water drum. a short tube connects the steam water drum with the uptake header and down header as shown in the figure.
What is the difference between low pressure boiler and high pressure boiler?
By definition, high pressure boilers are built to a maximum allowable working pressure (MAWP) above 15 psig, while low pressure boilers are designed for operation at 15 psig or below. Low pressure boilers are most commonly utilized in heating applications and require less maintenance than that of a high pressure unit.
What happens if boiler pressure too high?
If the boiler pressure is too high, there’s an increased chance of leaks developing in the system. But if boiler pressure is too low, the system won’t work as well. So keeping the correct boiler pressure is important to make sure that your system heats your home efficiently.
What are the features of high pressure boilers?
Characteristics of a High Pressure Boiler
- Power of Steam: Steam is formed when water expands 1600 times.
- Combustion Efficiency:
- Thermal Efficiency:
- Fuel-to-Steam Efficiency:
- Stack Temperature and Losses:
- Excess Air:
- Radiation and Convection Losses:
- Heating Surface:
What type of boiler is best?
Condensing boilers
Pros: Condensing boilers are the best types of boilers for the environment. Condensing boilers allow you to heat your home in a way that’s much more efficient, and that means you’ll save money on your heating bills and save energy as well.
What is maximum working pressure of Babcock and Wilcox boiler?
What is maximum working pressure of Babcock and Wilcox boiler? Clarification: The maximum working pressure of a Babcock and Wilcox boiler is 40 bar. Babcock and Wilcox is used when pressure above 10 bar and steam capacity greater than 7000 kg/hr is required. It is a water-tube boiler.
